Harness Colour Code

Recovery Bulkhead to E-matches/Payload

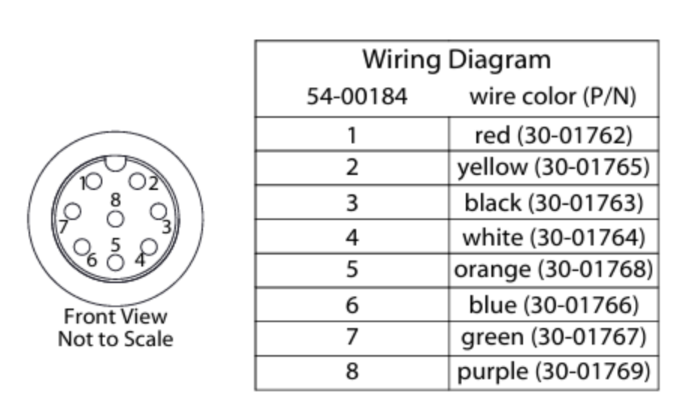

M12 pinout (839-10-04040-ND):

M12 Colour Code

Pin Number	Colour	Usage
1	Red	CHARGE
2	Yellow	CANL
3	Black	GND
4	White	Drogue
5	Orange	Main
6	Blue	Main
7	Green	CANH
8	Purple	Drogue

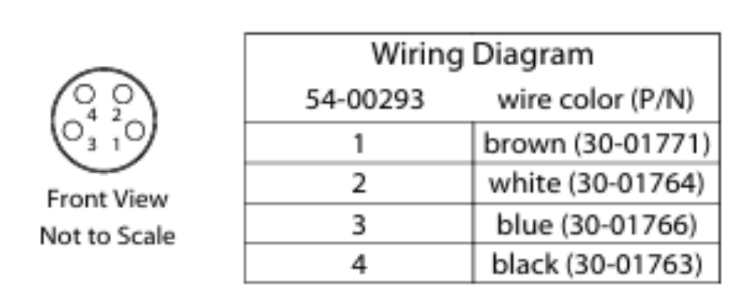

M8 pinout (839-10-05256-ND)

M8 Colour Code

Pin Number	Colour	Usage
1	Brown	Drogue
2	White	Main
3	Blue	Drogue
4	Black	Main

Recovery Bulkhead to Recelec/Remote Arming

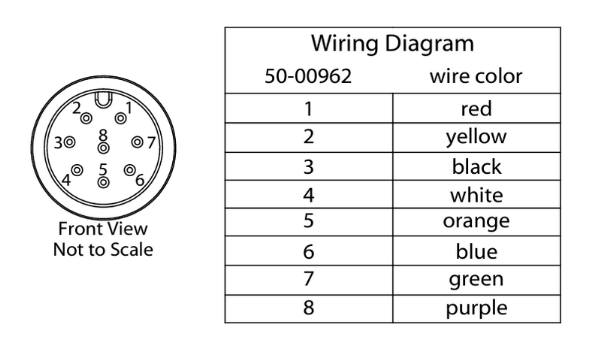

M12 pinout (839-10-04505-ND)

M12 Colour Code

Pin Number	Colour	Usage
1	Red	CHARGE
2	Yellow	CANL
3	Black	GND
4	White	Drogue
5	Orange	Main
6	Blue	Main
7	Green	CANH
8	Purple	Drogue

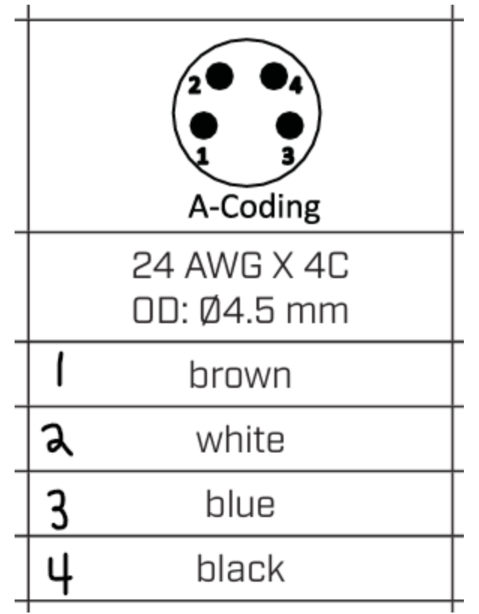

M8 pinout (2223-CDM815-04A-01MST-1M-67-ND)

M8 Colour Code

Pin Number	Colour	Usage
1	Brown	Drogue
2	White	Main
3	Blue	Drogue
4	Black	Main

Main Harness

Main Harness Colour Code

Netlabel	Pin Number	26 AWG Colour	Tefzel Colour (White + Stripe)
CHG	1	Red	Red
CANL	2	Yellow	Orange
CANH	3	Green	Green
GND	4	Black	Black
5V	5	Blue	Blue
12V	5	White	White
